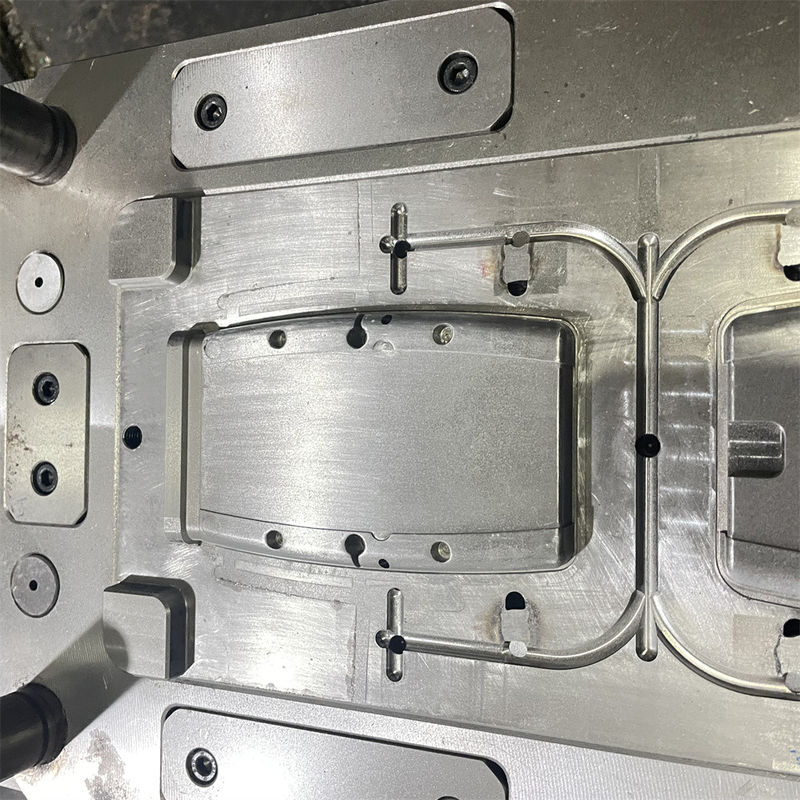

Soft Material TPE Overmold Over Mould With PC For Power Box Grey Color

 TPE soft material overmold with PC for power box grey color

The product with ABS plastic and TPE overmold,the client request the button should work no problem at temperature -15degree -30degree.

 Client Requests:

•  TPE material hard filling.
•  TPE easy get sink mark
•  TPE button easy get hard after long time stay in -10/-15 degree.
•  The TPE overmold at the curve surface, it is easy to get flash.
•  Product request no any defect points on the surface.
• Product need no any deforamtion and the gap should be clean and straight.

What Elite do:

• Improve the product drawing. After discussing with client, we change the product design,but no effect on the product function.The new product drawing is more easy to make mass production, easy to control the size.
• Make good mould drawing, and cooling. Ensure the mould is easy to producte.
•  Checked many different material,and find the right and good TPE material.
•  Control the product deformation and ensure the product surface are high quality.
• Assemble with PCB and other component and suggest on the function.

Documents provided by Elite

• DFM report.
• Updated product drawing.
• Mould 2D/3D drawing.
• Mould timeline with many photo and process video.
• Product dimension report.
• Assembly report
• Trail video
• Moud checking list

Quality Control and special advantage

• Mould design checking list.
• Mould inspection report
• Weekly timeline
• Product dimension report
• Product assembly report
• Video meeting with fluquent english and professional engineer team on each time product change and trial result.

.
