Custom Motor Gear MIM Stainless Steel Precision Injection Molding
|
Custom Motor Gear MIM Stainless Steel Precision Injection Molding
| Place of Origin | China |
| Brand Name | didaINT |
| Certification | ISO9001 |
| Model Number | E902 |
Product Details
Cavity Material:
H13
Colour:
Customizable
Mold Standard:
DME
Shipment:
By Sea Or Air , Or Express
Precision:
0.02mm
Plastic Mold:
Household Appliance Mold
Cavity No:
Single / Multiple
Mold Design Software:
UG, ProE, Solidworks
Mouldlife:
1million Shots
Highlight:
Custom Motor Gear MIM
,Stainless Steel Precision Injection Molding
,Precision Injection Mold with Warranty
Payment & Shipping Terms
Minimum Order Quantity
100
Price
0.1-1usd/pcs
Packaging Details
carton
Delivery Time
1-4weeks
Payment Terms
T/T,D/P,Western Union
Supply Ability
100000pcs/month
Product Description

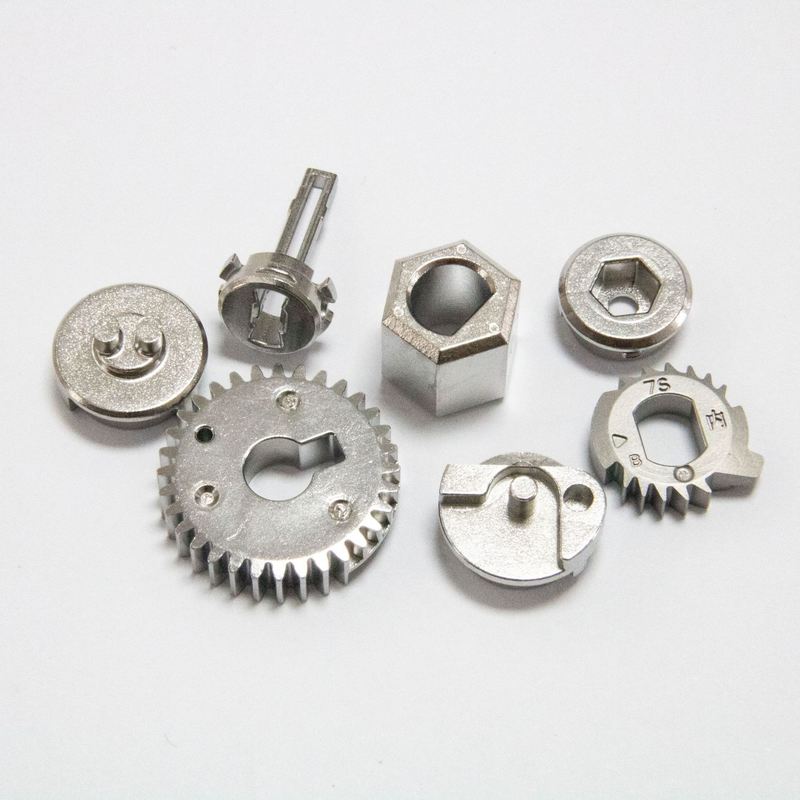

Custom Motor Gear MIM Stainless Steel Precision Injection Molding
Our custom motor gears are manufactured using advanced Metal Injection Molding (MIM) technology, offering a perfect blend of high precision, complex geometry, and exceptional strength. We provide a one-stop solution from initial design and custom mold creation to sintering and secondary operations, ensuring your motor assemblies operate with maximum efficiency and reliability.
Product Attributes & Specifications
| Feature | Specification |
|---|---|
| Process | Metal Injection Molding (MIM) |
| Material | 17-4PH Stainless Steel, 316L Stainless Steel, Custom alloys available |
| Density | >7.5 g/cm³ (Typically 96-99% of theoretical density) |
| Tensile Strength | Up to 1000 MPa (Varies by material and heat treatment) |
| Surface Finish | As-sintered, Polished, Tumbled, or Plated |
| Tolerance | ±0.3% typical, ±0.1% with secondary machining |
| Brand | didaINT |
| Model | Custom (Based on your drawing and specifications) |
| Secondary Operations | Deburring, Heat Treatment, CNC Machining, Grinding |
Summary Recommendations
Machining Workshop
FAQ
Q1: What is the main advantage of MIM for gears compared to traditional machining?
A: MIM allows for the production of complex, high-precision gear geometries (like helical gears or gears with intricate hubs) in a single, net-shape process. This eliminates expensive multi-step machining operations, reduces material waste, and lowers the overall cost, especially for production volumes from 10,000 to millions of parts.
Q2: What materials do you offer for MIM gears?
A: We primarily use high-performance stainless steels like 17-4PH (for high strength and hardness) and 316L (for superior corrosion resistance). We can also work with other low-alloy steels and custom material blends to meet your specific mechanical or magnetic property requirements.
Q3: Can you achieve the tight tolerances required for high-speed motor applications?
A: Absolutely. The MIM process itself holds tight tolerances (±0.3%). For critical features like bore diameters or gear profiles requiring tolerances under ±0.05mm, we offer secondary CNC machining and grinding services to meet the most demanding specifications.
Q4: Do you provide design for manufacturability (DFM) analysis?
A: Yes, as a full-service partner, we provide a comprehensive DFM analysis at no cost. Our engineering team will review your gear design and suggest optimizations for the MIM process to enhance performance, reduce cost, and ensure a smooth production cycle.
Q5: What is your typical lead time for a new custom gear project?
A: Lead time varies by project complexity. Typically, custom mold design and fabrication take 3-4 weeks. First article samples are delivered for approval shortly after. Once approved, mass production for a batch of 50,000 parts can be completed within 6-8 weeks. We offer expedited services upon request.
