Semi Automatic PET Bottle Blow Moulding Machine with 80KG Clamping Force and 1600*610*1580mm Dimension for HDPE Bottle Making
|
Semi Automatic PET Bottle Blow Moulding Machine with 80KG Clamping Force and 1600*610*1580mm Dimension for HDPE Bottle Making
| Place of Origin | China |
| Brand Name | Elite |
| Certification | Iso9001 |
| Model Number | Semi-Automatic |
Product Details
Plastic Processed:
PET, PE/PP
Voltage:
Acoording Customer Country
Core Components:
Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Other
Warranty:
1 Year
Neck Diameter(mm):
38
Max.bottle Diameter(mm):
350
Clamping Force (kn):
80
Weight (kg):
600
Dimension(l*w*h):
1600*610*1580mm
Highlight:
80KG Clamping Force PET Bottle Blow Moulding Machine
,Semi Automatic HDPE Bottle Making Line
,1600*610*1580mm Dimension Bottle Blowing Machine
Payment & Shipping Terms
Minimum Order Quantity
1
Price
4500USD/UNIT
Packaging Details
wooden package
Delivery Time
3-10days
Payment Terms
D/P,T/T,Western Union
Supply Ability
10000unit/month
Product Description

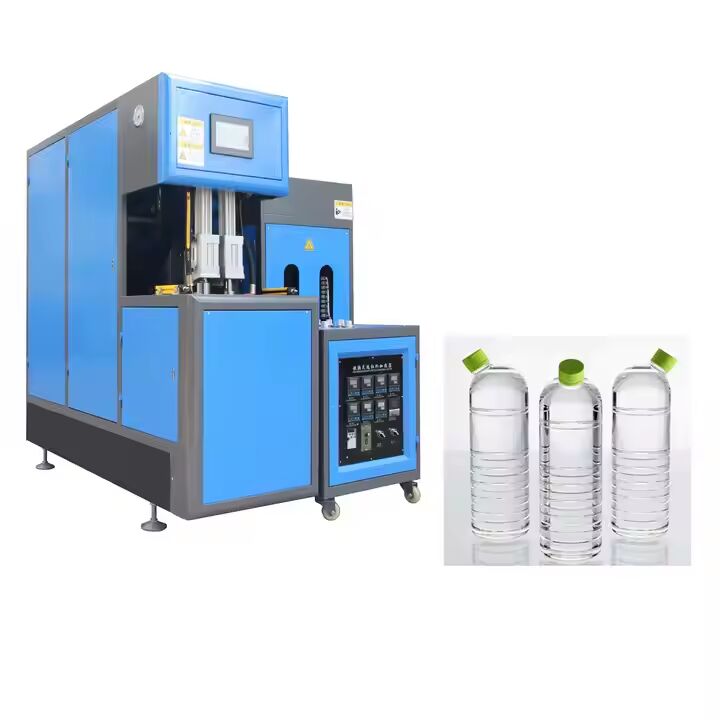

Semi Automatic PET Bottle Blow Moulding Machine
This semi-automatic PET bottle blow moulding machine is designed for efficient production of HDPE and PET bottles ranging from 10ml to 3L capacity. Ideal for manufacturing mineral water bottles, beverage containers, and daily chemical bottles with precision and reliability.
Key Features
- Versatile production capability for 10ml-3L bottles in various shapes and applications
- Advanced far infrared rotary oven with frequency control and constant temperature for uniform heating
- Hyperbolic arm four-pull rod mold structure ensures stability under high pressure conditions
- Dual-pressure gas system: low pressure for mechanical operations and high pressure for bottle forming
- Computer automated control system for easy operation and minimal investment requirements
- Compact design enables single-operator functionality with enhanced safety features
Technical Specifications
Molding Specifications
| Clamping Force | 80KG |
| Clamping Stroke | 140mm |
| Stretching Stroke | 360mm |
| Min Mould Thickness | 120mm |
| Max Mould Thickness | 200mm |
| Template Effective Area | 340*350mm |
| Number of Cavity | 2 cavities |
| Theoretical Output | 800-1100 bph |
Electrical System
| Power of Machine | 0.1kw |
| Installed Power of Heater | 9kw |
| Number of Lamp Layers | 10 Layers |
Air Compressor Requirements
| Operating Pressure | 7-9 kg/cm² |
| Low Pressure Air Consumption | 800 ltr/min |
| Blowing Pressure | ≤30 kg/cm² |
| High Pressure Air Consumption | 1600 ltr/min |
Container Specifications
| Container Volume | 0.1-3L |
| Bottle Height | ≤350mm |
| Preform Inner Diameter | 12-75mm |
| Product Material | PET |
Machine Dimensions
| Blower Size | 1600*610*1580mm |
| Blower Weight | 600kg |
| Heater Size | 1710*570*1360mm |
| Heater Weight | 200kg |
Product Images
