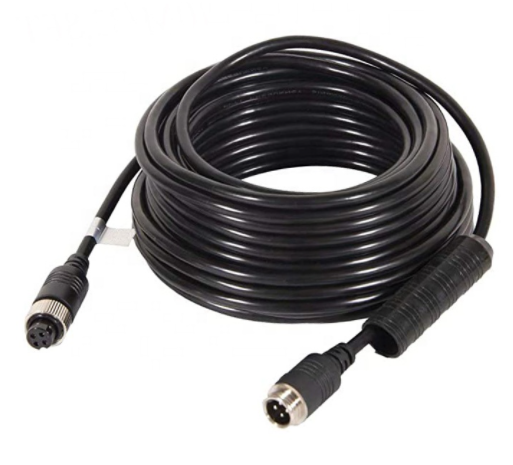

IP68 Waterproof M15 Connector Cable with 300V Rated Voltage and 2-6 Pin Options for LED Strip Light Wire
|
IP68 Waterproof M15 Connector Cable with 300V Rated Voltage and 2-6 Pin Options for LED Strip Light Wire
| Place of Origin | China |
| Brand Name | Elite |
| Certification | ISO9001:2015 |
| Model Number | M15 |
Product Details
Type:
Insulated
Rated Voltage:
300v
Insulation MateriaL:
PVC
Operating Temperature:
-20℃ ~ 80℃
Conductor Type:
Other
Product Application:
Electrical Equipment
IP Rating:
IP68
Male Terminal Type:
M15 Style
Overmolding Material:
PVC
Payment & Shipping Terms
Minimum Order Quantity
50 pcs
Price
USD 5-100/PCS
Packaging Details
box
Delivery Time
3-10days
Payment Terms
L/C,D/A,D/P,T/T,Western Union
Supply Ability
100000 PCS/Month
Product Description
|
Product Name
|
M15 Waterproof Low Voltage Male Female Connector Cable, 2Pin/3Pin, 5 Inch
|
|
Material
|
Copper + PVC
|
|
Application & Features
|
Widely used for LED industry, marine equipment, geothermal equipment, street light, aquaculture, laser device, lighting, furniture, partition screen and so on
|
|
DC Spec / Dimension
|
M15, 2~6 Pin available
|
|
Waterproof Grade
|
IP65 Waterproof
|
|
Packaging
|
Carton Box
|
Operating Parameters
Rated Voltage: AC 300V
Rated Current: ≤8A
Mating Cycles: 1500 times
Max. Cable Outer Diameter: ≤5.0mm
Rated Voltage: AC 300V
Rated Current: ≤8A
Mating Cycles: 1500 times
Max. Cable Outer Diameter: ≤5.0mm
Circuit Structure: Parallel
Contact Resistance: 10mΩ
Insulation Resistance: 500MΩ @ DC500V
Withstand Voltage: 1.5KV
Contact Resistance: 10mΩ
Insulation Resistance: 500MΩ @ DC500V
Withstand Voltage: 1.5KV
Performance description
Temperature Rating: -20℃ ~ +85℃
Ingress Protection Rating: IP68
RoHS Compliant MaterialSocket Housing Material: PVC
Pin Material: Nickel-Plated Brass
O-Ring: Rubber
Ingress Protection Rating: IP68
RoHS Compliant MaterialSocket Housing Material: PVC
Pin Material: Nickel-Plated Brass
O-Ring: Rubber
