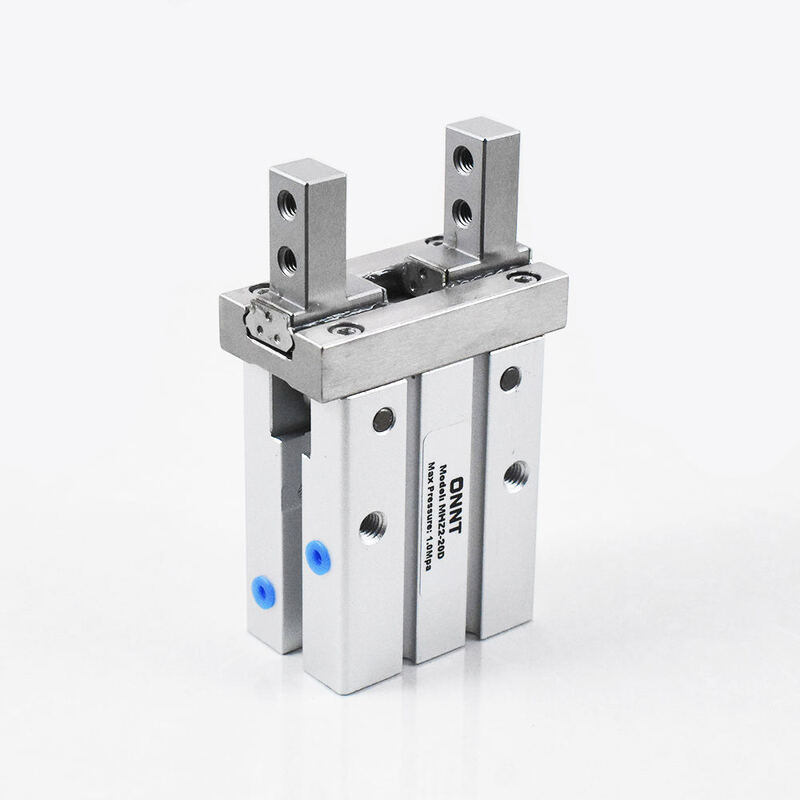

SMC Standard MHz2 Series Pneumatic Gripper Cylinder MHz2-16D Parallel Air Finger for Robot Manipulator
|
SMC Standard MHz2 Series Pneumatic Gripper Cylinder MHz2-16D Parallel Air Finger for Robot Manipulator
| Place of Origin | China |
| Brand Name | Hitbot |
| Certification | ISO900 |
| Model Number | HFZ |
Product Details
Material:
Aluminum Alloy/Stainless Steel
Type:
Double Motion
Port Size:
M5X0.3, M5X0.8 Thread
Aperture:
6/10/16/20/25/32/40 Millimeters
Front Cover/Back Cover:
Aluminum Alloy
Fluid:
Air
Work Pressure:
0.15 To 1.0 Megapascals
Under Pressure:
1.5 MPa / 215 Psi
Working Temperature:
-20-70°
Highlight:
MHz2 pneumatic gripper cylinder
,parallel air finger gripper
,robot manipulator gripper cylinder
Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD200-10000/ Pcs
Packaging Details
Carton
Delivery Time
3-7days
Payment Terms
L/C,D/A,D/P,T/T,Western Union
Supply Ability
100000 pcs/month
Product Description
SMC Standard MHz2 Series Pneumatic Gripper Cylinder MHz2-16D
Parallel Air Finger for Robot Manipulator
Product Overview
The MHZ2 series is a high-precision parallel open/close type pneumatic gripper designed for automated handling and positioning applications. Featuring an integrated linear guide structure and dual positioning pins, it delivers exceptional rigidity and stable performance, ensuring precise workpiece grasping and placement.
Equipped with a non-contact magnetic switch slot, the gripper supports easy integration of position detection sensors, enabling seamless connection with PLC and automated control systems. The aluminum alloy body and stainless steel fingers ensure durability and resistance to corrosion, making it suitable for harsh industrial environments.
Component Materials
| NO. | Items | Material | NO. | Items | Material |
|---|---|---|---|---|---|
| 1 | Rod-type packaging | Nitrile rubber | 11 | Piston | Aluminum alloy/stainless steel |
| 2 | O-ring | NBR | 12 | Fixed by magnet | Stainless steel |
| 3 | Bumper | Thermoplastic polyurethane | 13 | Screw | Carbon steel |
| 4 | Magnet | Sintered metal | 14 | Piston rod | Aluminum alloy/Stainless steel |
| 5 | Magnetic washer | NBR | 15 | Safety pin | Stainless steel |
| 6 | Piston seal | NBR | 16 | Pin | Stainless steel |
| 7 | Body | Aluminum alloy | 17 | Curved rod | Stainless steel |
| 8 | O-ring | NBR | 18 | Pin | Stainless steel |
| 9 | C-clip | Spring steel | 19 | Countersunk screw | Carbon steel |
| 10 | Back cover | Aluminum alloy | 20 | Gripper assembly and guide rails | Stainless steel |
Specification Diagrams
Frequently Asked Questions
Q1: What is the difference between MHZ2-16D and MHZL2-16D?
MHZ2-16D is the standard parallel pneumatic gripper with a standard stroke, while MHZL2-16D is the long-stroke version of the same series, featuring a larger opening distance to accommodate workpieces of larger sizes, with the same core structure and material.
Q2: What materials are used for this pneumatic gripper?
The main body is made of anodized aluminum alloy for light weight and high rigidity; the gripping fingers and internal piston are made of stainless steel for wear resistance and corrosion resistance; the seals are made of NBR (FKM optional for special working conditions).
Q3: What is the gripping force of MHZ2-16D/MHZL2-16D?
At 5bar air pressure and 20mm stroke, the external gripping force of MHZ2-16D is 34N and the internal gripping force is 45N; MHZL2-16D has the same gripping force parameters as the standard model, with only the stroke and opening distance increased.
